- Size: 1
- Place of Origin: china
- Brand Name: Jinan huafu forging co., LTD
- Model Number: 60003
- Weight: 20.000 kg

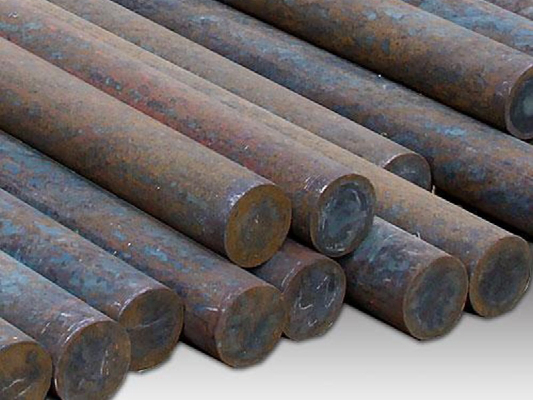

Our company produces a new type of alloy wear resistant steel rod is produced by the method,dimensions completely can be adjusted according to customer requirements, increase flexibility , To eliminate the unnecessary waste.At the same time, it extended the service life, improve the efficiency of the mill production, saves the production cost, reduce the labor of the workers.
1.We mainly produce as follows kinds of grinding rod
Series Element | C(%) | Si(%) | Mn(%) | Cr(%) | Cu(%) | Mo(%) | P(%) | S(%) |
HFMB-A | 0.42-0.50 | 0.17-0.37 | 0.5-0.80 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 |
HFMB-B | 0.48-0.56 | 0.17-0.37 | 0.60-1.0 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 |
HFMB-C | 0.57-0.65 | 0.17-0.37 | 0.70-1.0 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 |
HFMB-D | 0.62-0.70 | 0.17-0.37 | 0.90-1.0 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 |
HFMB-E | 0.37-0.45 | 0.17-0.37 | 0.50-0.8 | 0.80-1.1 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 |
B-1 | 0.52-0.65 | 0.17-0.37 | 0.60-1.2 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 |
B-2 | 0.70-0.80 | 0.17-0.37 | 0.60-0.80 | 0.50-0.60 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 |
B-3 | 0.72-0.92 | 0.17-0.37 | 0.70-1.0 | 0.50-0.90 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 |
2.Technical specification of grinding rod
Diameter(mm) | Hardness | Impact value | Strength of extension (mpa/mm^2) | Length tolerance | Diameter tolerance | Breakage rate |
Φ25-120 | 20-55HRC | ≧12j/cm^2 | ≧1000 | 0,≦-25mm | 0,≦-1.5mm | ≦3% |
